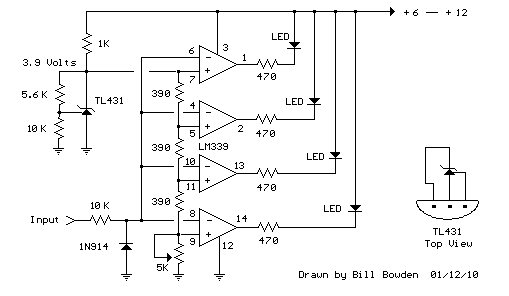

This is a similar circuit to the above and provides a 4 LED
bar graph indicating the voltage of a common 3.6 volt
Lithium - Ion recharable cell phone battery. The reference
voltage is provided by a TL431 programmable voltage source
which is set to 3.9 volts where the TL431 connects to the
1K resistor. The lower reference for the LED at pin 14 is
set with the 5K adjustable resistor.
The programmed voltage of the TL431 is worked out with a
voltage divider (10K 5.6K). The adjustment terminal or
junction of the two resistors is always 2.5 volts. So, if
we use a 10K resistor from the adjustment terminal to ground,
the resistor current will be 2.5/10000 = 250uA. This same current
flows through the upper resistor (5.6K) and produces a voltage
drop of .00025 * 5600 = 1.4 volts. So the shunt regulated output
voltage at the cathode of the TL431 will be 2.5 + 1.4, or 3.9 volts.
Working out the LED voltages, there are three 390 ohm resistors
in series with another adjustable (5K) resistor at the bottom.
Assuming the bottom resistor is set to 2K ohms, the total
resistance is 390+390+390+2000 = 3170 ohms. So, the resistor
current is the reference voltage (3.9) divided by the total resistance,
or about 3.9/ (390 + 390 + 390 + 2000) equals 1.23 mA. This gives us
about .00123*2000= 2.46 volts for the bottom LED, and about
.00123*390 = .48 volts for each step above the bottom. So, the LEDs
should light at steps of 2.46, 2.94, 3.42, and 3.9. A fully charged
cell phone battery is about 4.2 volts. You can adjust the 5.6K resistor
to set the top voltage higher or lower, and adjust the lower 5K resistor
to set the bottom LED for the lowest voltage. But you do need a 6 to
12 volt or greater battery to power the circuit.
