Semiconductors: Q1 = MPF102, JFET. (2N4416, NTE451, ECG451, etc.) Q2,Q3,Q4 = 2N3904, NPN transistor Resistors: All Resistors are 5%, 1/4-watt R1 = 1 MegOhm R5 = 10K R2,R10 = 22 ohm R6,R9 = 1K R3,R11 = 2K2 R7 = 3K3 R4 = 22K R8 = 470 ohm Capacitors (rated at least 16V for a 9V supply): C1,C3 = 470pF C2,C5,C6 = 0.01uF (10nF/103) C4 = 0.001uF (1nF/104) C7,C9 = 0.1uF (100nF/102) C8 = 22uF/16V, electrolytic Miscellaneous Parts & Materials: B1 = 9-volt Alkaline battery S1 = SPST on-off switch J1 = Jack to match (your) receiver cable ANT1 = Telescoping whip antenna (screw mount), wire, brass rod (about 12") MISC = PCB materials, enclosure, battery holder, 9V battery snap, etc.
Semua yang berhubungan dengan Aplikasi elektronik seperti skema rangkaian elektronika, teori elektronika, serta tata cara perakitan & reparasi rangkaian elektronika ada disini...
Sabtu, 17 November 2012

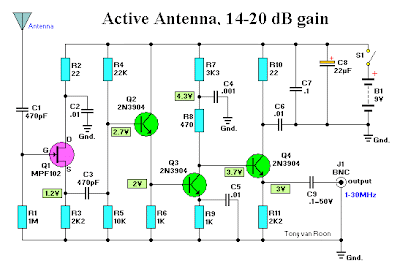

Active antenna 1 to 20dB, 1-30 MHz range.
Parts List and other components:
