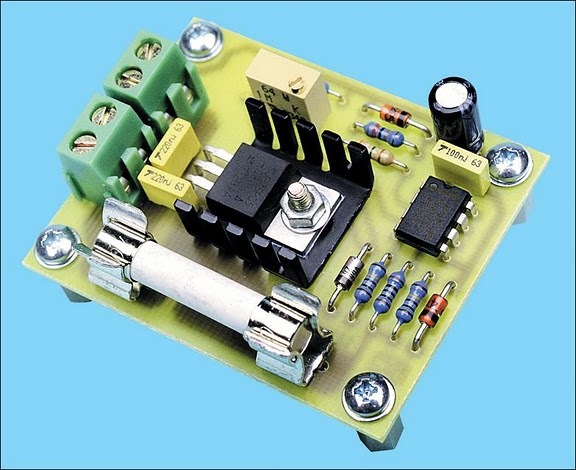

Micropower Battery Protector

Circuit Diagram



Protect your expensive batteries from discharge damage with this mini-sized electronic cutout switch. It uses virtually no power and can be built to suit a wide range of battery voltages.
Main Features

• Disconnects load at preset battery voltage
• Automatically reconnects load when battery recharged
• Ultra-low power consumption (<20ma)
• Miniature size
• 10A maximum rating
• Suitable for use with 4.8-12.5V batteries
• Transient voltage protection (optional)

Suitable for use in...

• Cars, boats & caravans
• Security systems
• Emergency lighting
• Small solar installations
• Camera battery packs
• Many other low-power applications
